Glass Bottle Beer Wine Filling Capping Machines

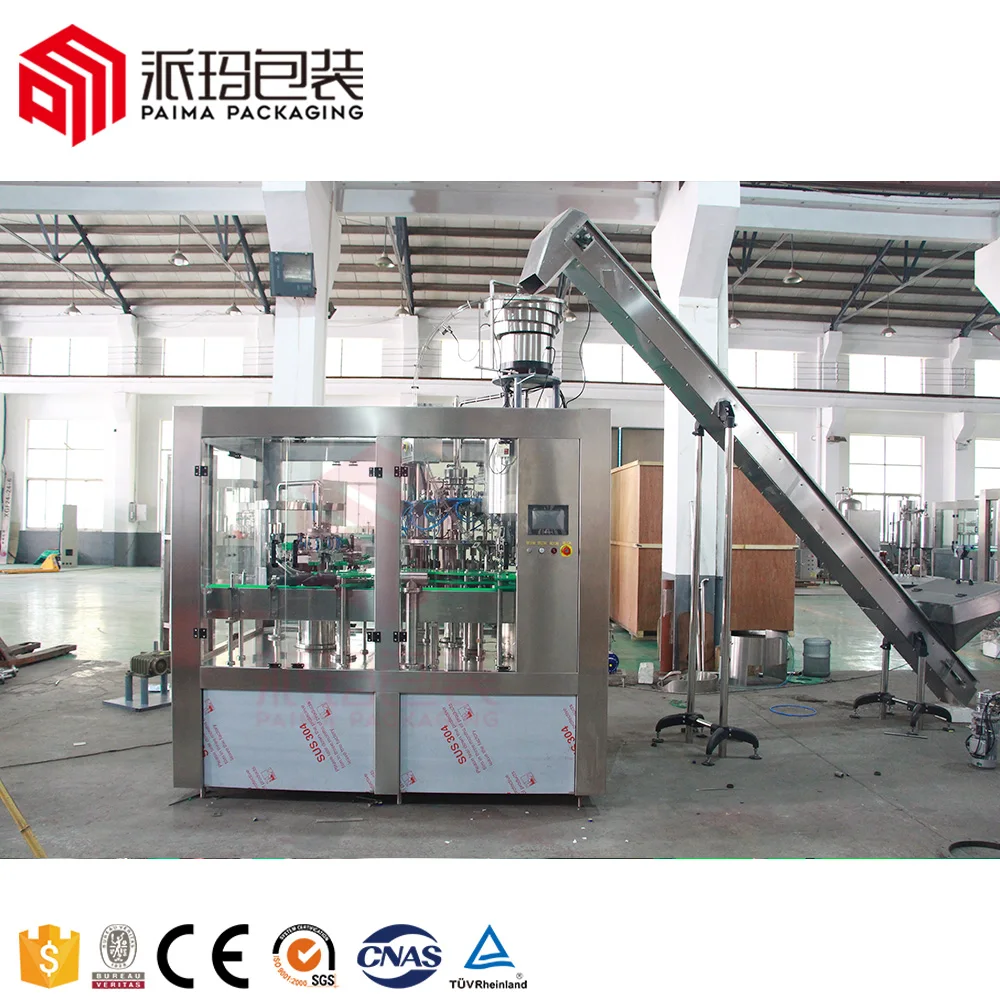

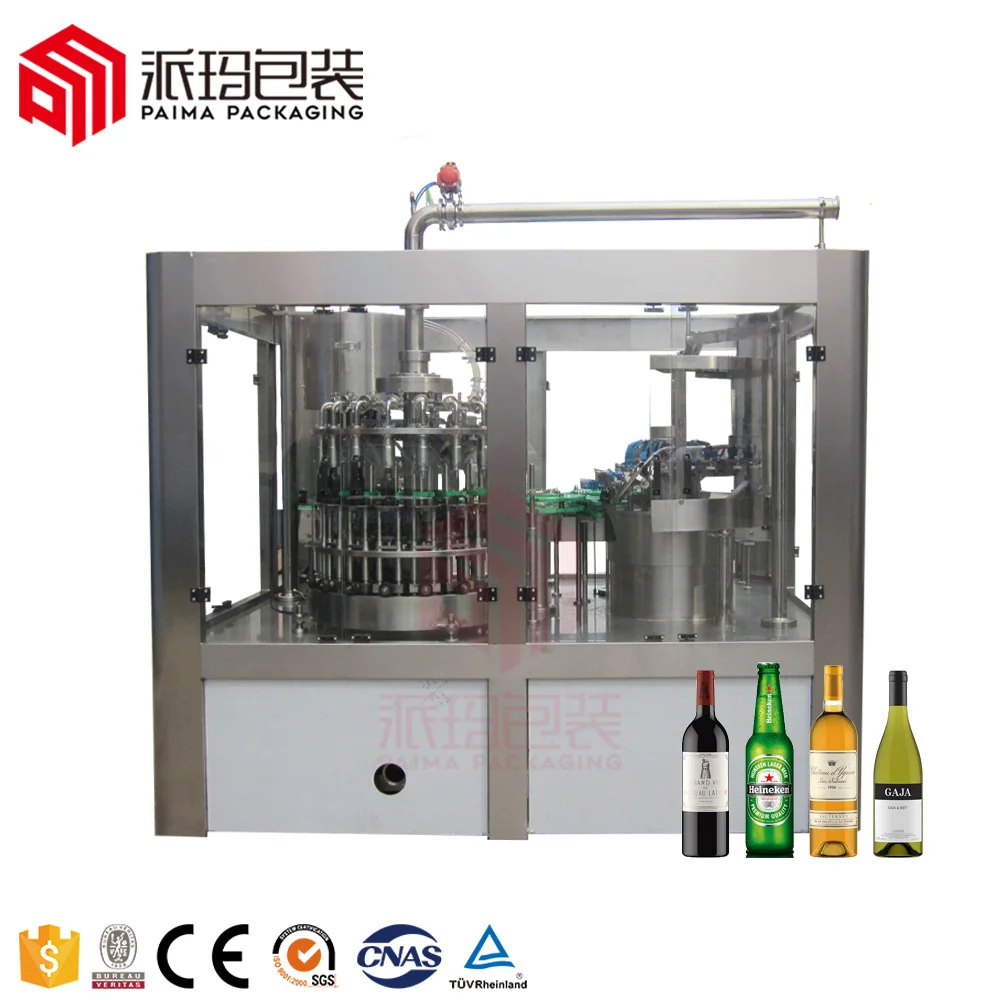

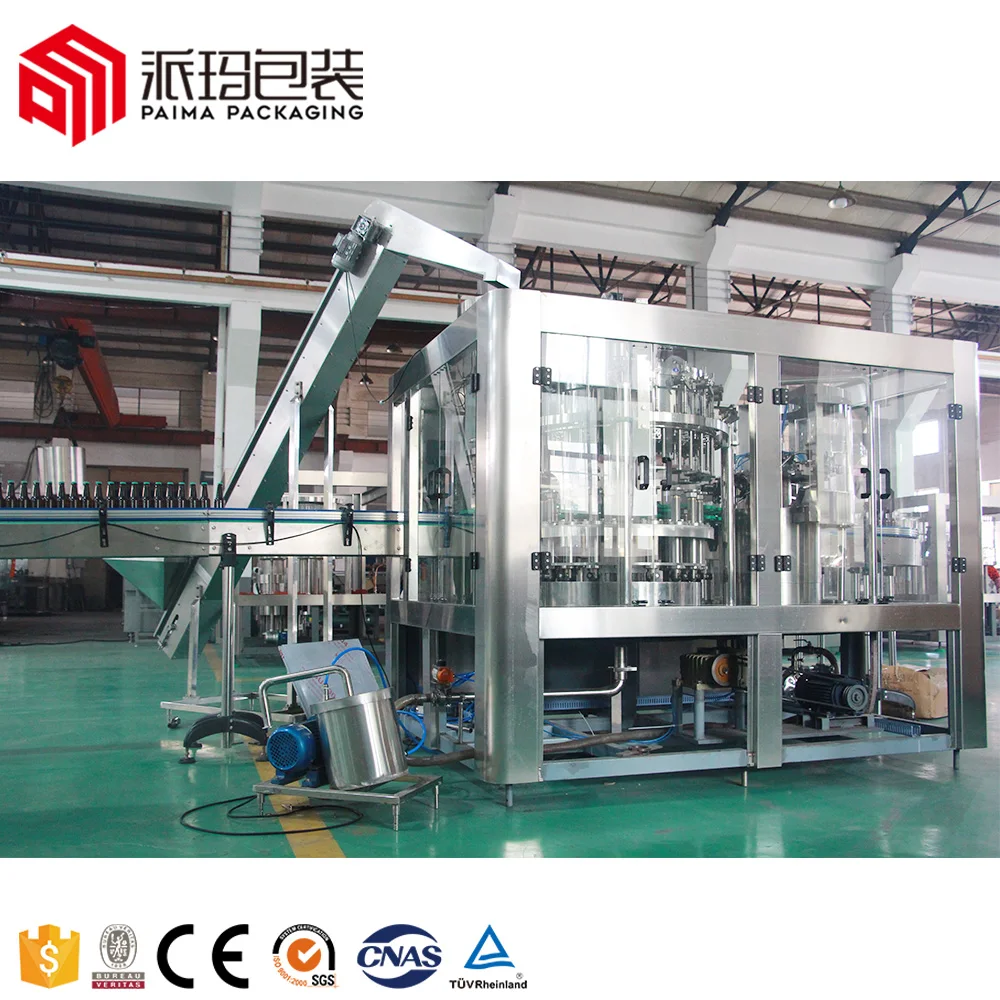

This automatic beer filling machine mainly used in the beverage filling operations, the three function of bottle washing, filling, and capping are composed in one body of the machine, the whole process is automatic, it is conveniently turned to adjust the machine to fill various types of bottles, the filling operation is faster and more stable due to the advanced filling valve technology, The famous brand programmed controller (PLC) is adopted to control the machine runs automatically. It is the ideal preferred equipment for the beverage maker

Quantity:
Inquire Add to Basket
  • Product Description
Product Description
Brief introduction of beer filling machine
The beer production process is divided into several processes such as malt manufacturing, wort manufacturing, pre-fermentation, post-fermentation, filter sterilization, and packaging. The beer filling and capping machines are part of the packaging process. After being filtered by the membrane, the beer is sent to the rotary beer tank through the pipeline, and then into the bottle through the filling valve, and bottled beer is obtained after capping. The working efficiency and automation of beer filling and capping machines directly affect the daily output of beer.

This series of glass bottle beer filling machine is dedicated to the isobaric filling production line of glass bottled beer and carbonated beverages. The filling adopts one-time or two-time vacuuming technology, it has the functions of automatically closing the valve and flushing broken glass, and using hot water to stimulate foam before pressing the lid.

Main Features of beer filling machine

1. This machine adopts fully automatic working mode, which automatically completes the station transfer of bottles and the cleaning and filling of each station without manual operation by personnel.
2. It is equipped with a separate cleaning function, only cleaning but not filling, and can be used as a pre-washing machine.

3. The mechanical transmission mechanism adopts the mechanical curved rod linkage mode to make the beer filling machine run smoothly, reliably, and accurately locate, and avoid the occurrence of failure rate.
4. The equipment is equipped with automatic flow detection, pressure detection, residual liquid detection after purging, wine spear opening detection and other detection functions, as well as station alarms.

5. The water tank is automatically filled with water, heated automatically and kept constant temperature.
6. The filling adopts CO2 backup pressure and pressure-maintaining low-pressure differential fully enclosed filling method. The filling volume is detected by imported flowmeters, which can ensure low foam, low consumption and accurate filling volume after filling.

7. The equipment can set and adjust the filling capacity through the touch screen, and can adjust the error, and can display the number of bottles and liters filled in real time.


Specification

Glass Bottle Beer/ Wine / Alcohol Filling Machine
Bottle Material: Glass Bottle
Cap: Metal Crown Cap
Bottle Volume: 100-2500ml
Production Speed: 1000-32000bph
Suitable Bottle:
Height 170-320
Diameter 50-100

Project
Beer Bottling Machine
Model
BCGF
14-12-4
BCGF
18-18-6
BCGF
24-24-8
BCGF
32-32-10
BCGF
40-40-12
BCGF
50-50-12
BCGF
60-60-15
BCGF
70-70-18
BCGF
80-80-22
Capacity (BPH)
2000
3500
6000
9000
11000
18000
22000
25000
30000
Bottle
type
φ=50-115
H=160-330
(200ML TO 2000ML)
Air pressure
(Mpa)
0.3-0.7
Power supply
2.2 KW
3.5 KW
3.8 KW
5.5 KW
7.5 KW
10 KW
13 KW
13 KW
13 KW
Overall dimension
2100×1800×2700
2600×2100×2700
3200×2300×2700
4200×2600×2700
4800×2800×2700
5700×3600× 2700
6000×4200×2700
6500×4500×2700
7000×5000×2700
Weight (KG)
2300
3500
4600
6500
8500
10000
11000
13000
14000

ITEM
DEVICES
BRAND
ORIGINS
1
PLC


SIEMENS
Germany
2
Inverter
3
Touch Screen
4
Switch


Schneider
France
5
Contactor
6
Relayer
7
Solenoid Valve
FESTO
Germany
8
Drive Motor
SEW EURODRIVE
9
Reducer
SEW EURODRIVE
10
Water Pump
GRUNDFOS
Denmark
11
Main Bearing
SKF
Sweden
12
Sensor
SICK
Germany
13
Air Component
FESTO
14
Stainless Steel Frame
POSCO
Korea
Details Images
Working Principle of Beer Bottling Machine
The beer filling and capping machine adopts the pressure filling method, which is filled at higher than atmospheric pressure, the pressure in the liquid storage tank is higher than the pressure in the bottle, and the beer liquid flows into the bottle by the pressure difference.  
Using the rotary motion generated by the rotary wine tank, the vacuum valve fixed on the upper part of the wine tank is opened through the mechanical mechanism for the empty bottle placed on the tank position, and the sealed bottle is vacuumed.
The vacuum cam continues to open the vacuum valve to draw out the mixed gas of air and carbon dioxide in the bottle, and the gas valve opens again to fill the bottle with carbon dioxide gas. Turn the outer operating valve stem, open the gas valve, and fill the bottle with carbon dioxide gas.
The liquid valve in the filling valve opens when the pressure in the bottle is close to the gas pressure, the beer is injected into the bottle along the bottle wall, and the beer is filled through the electric control of the filling valve.

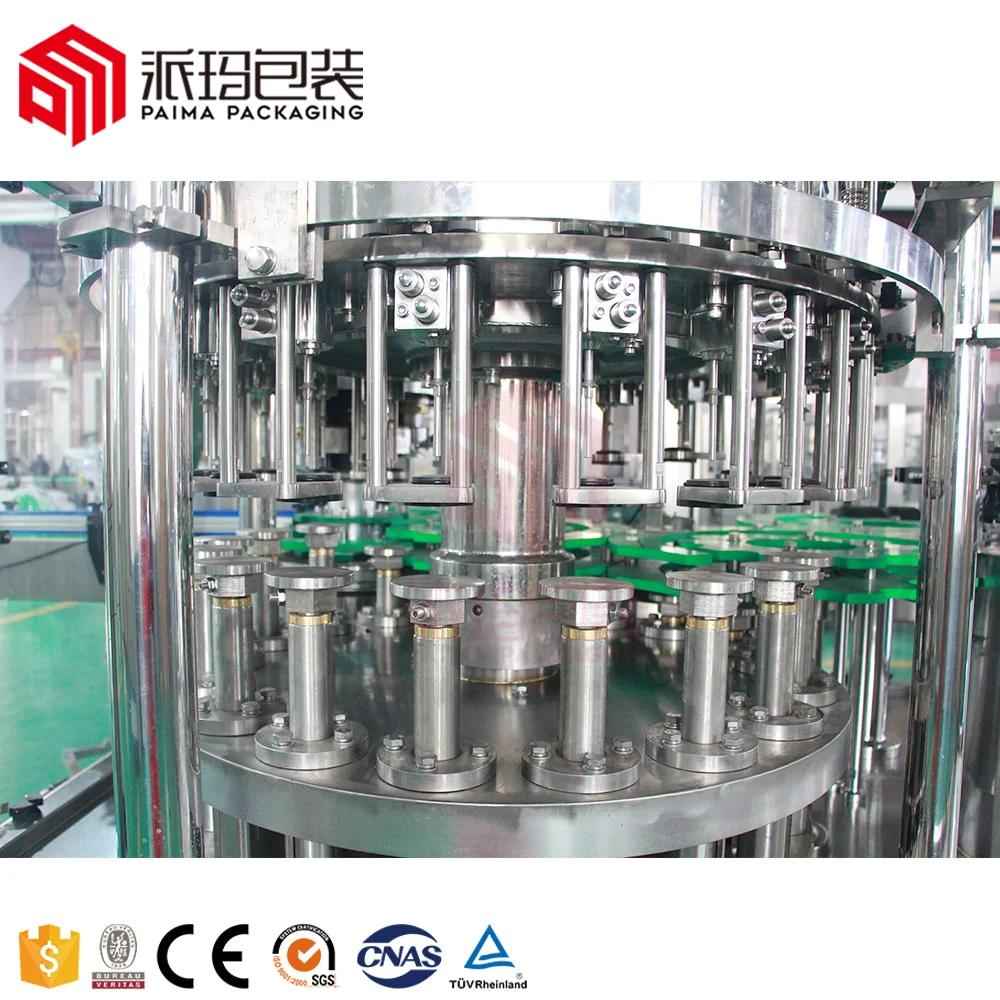

Washing parts of beer filling machine:

1. Safety and hygiene: Stainless steel 304/316L for all components

2. Latest water-saving technology: Saving 30% water consumption
3. Latest Machine Structure: Avoid a large amount of water accumulation inside the machine structure
4. Strong and Durable
5. The latest drainage design will not accumulate water

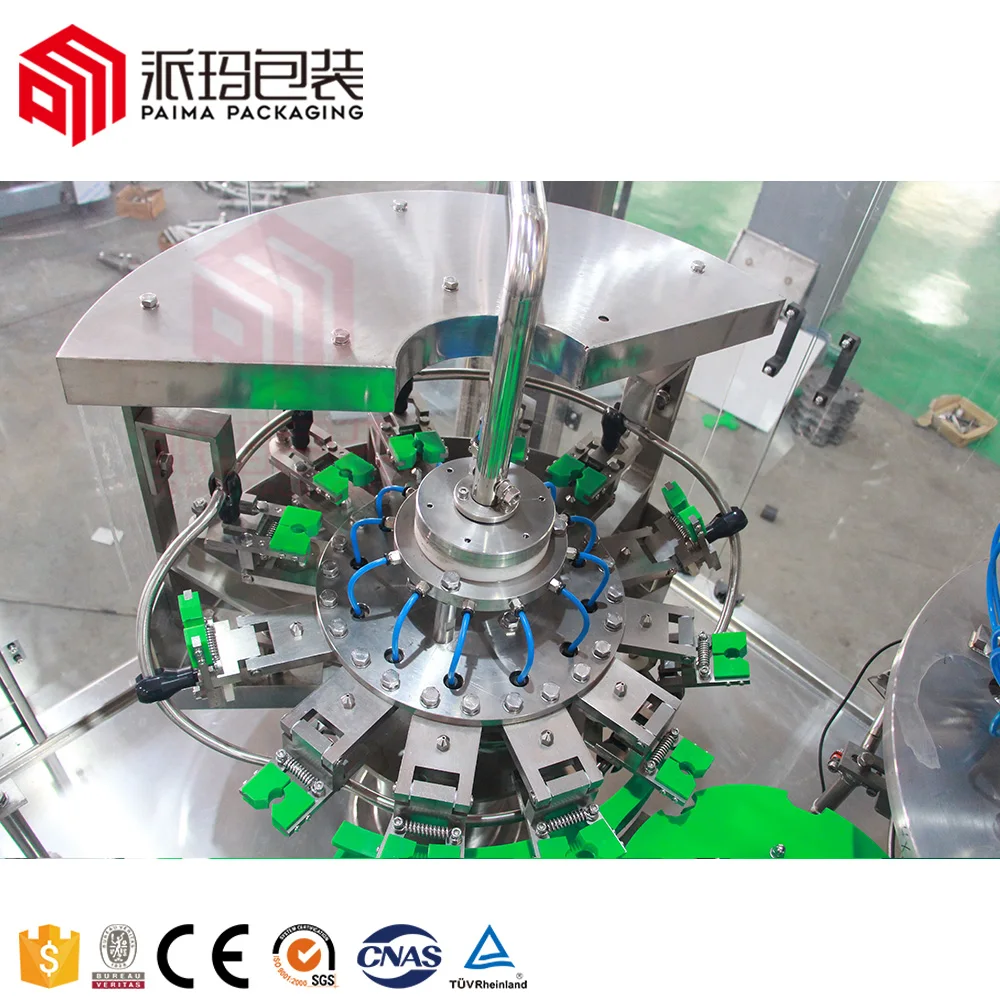

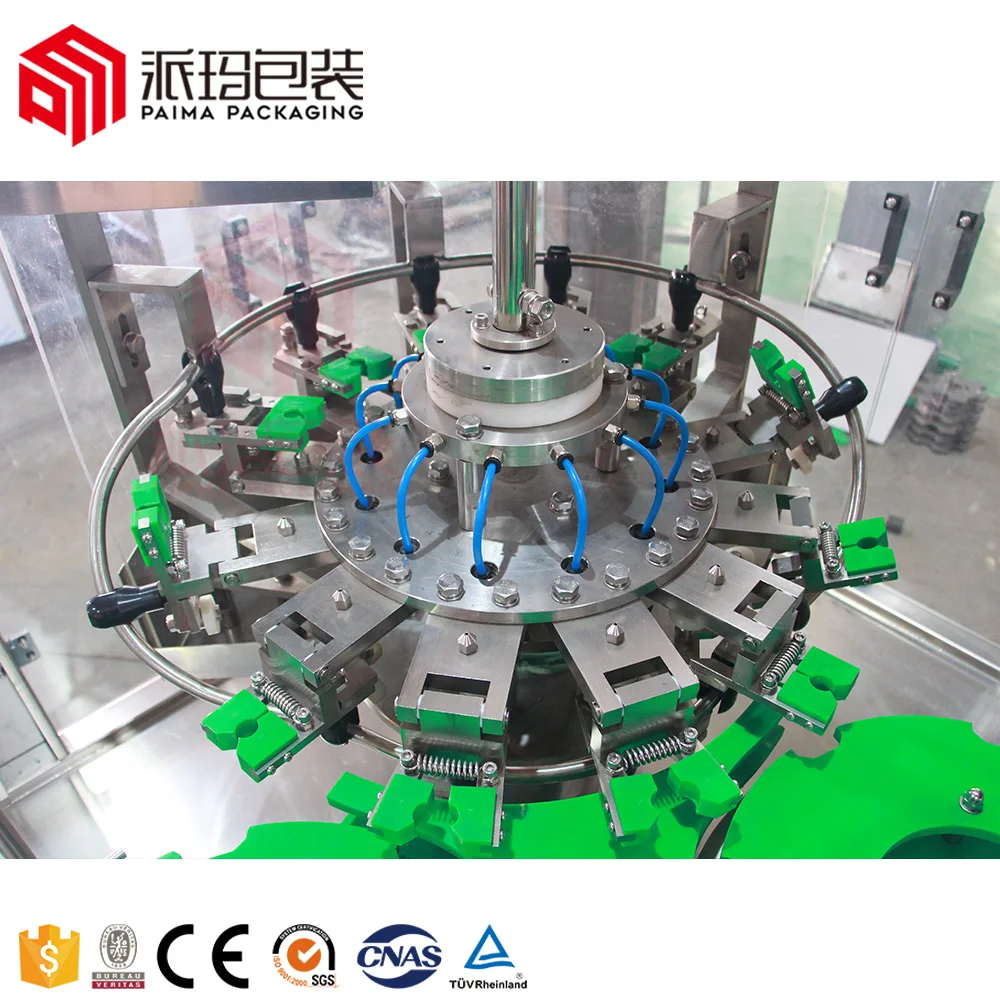

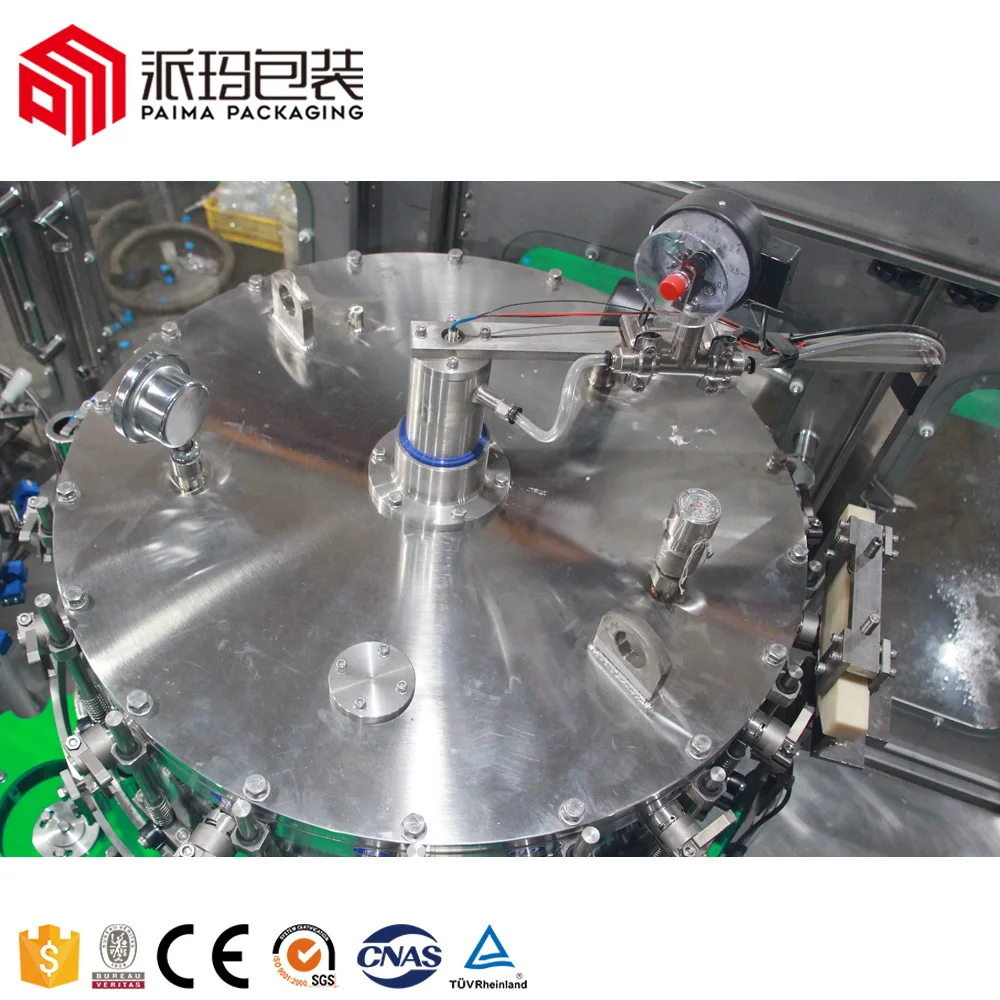

Filling parts of beer filling machine：

1. 2 times vacuum, 2 times CO2 injection

2. No bottle , no filling

3. Stainless Steel 304/316 high precision filling nozzle

4. Level height can be adjusted , bought from Nanjing , the best valve in China

5. Efficient spray nozzle rinse throughly and save water for flushing

6. The latest drainage design will not accumulate liquid

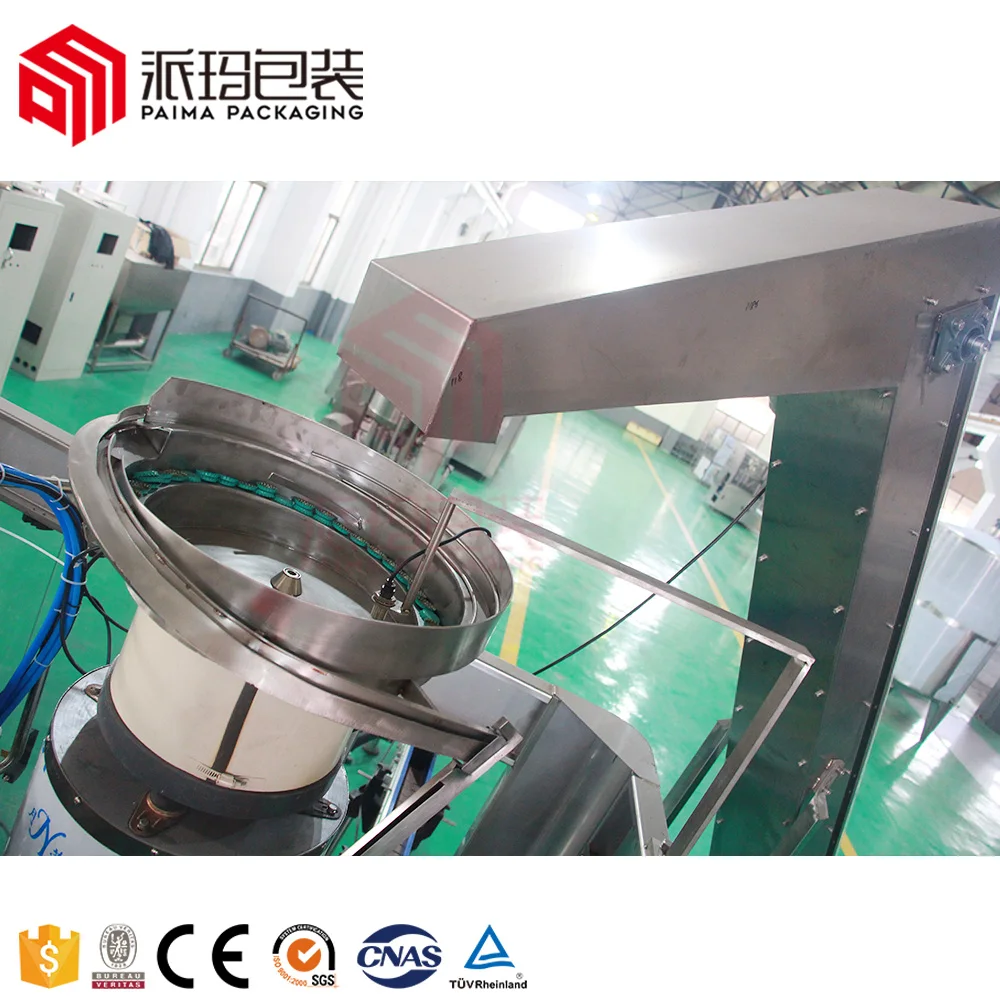

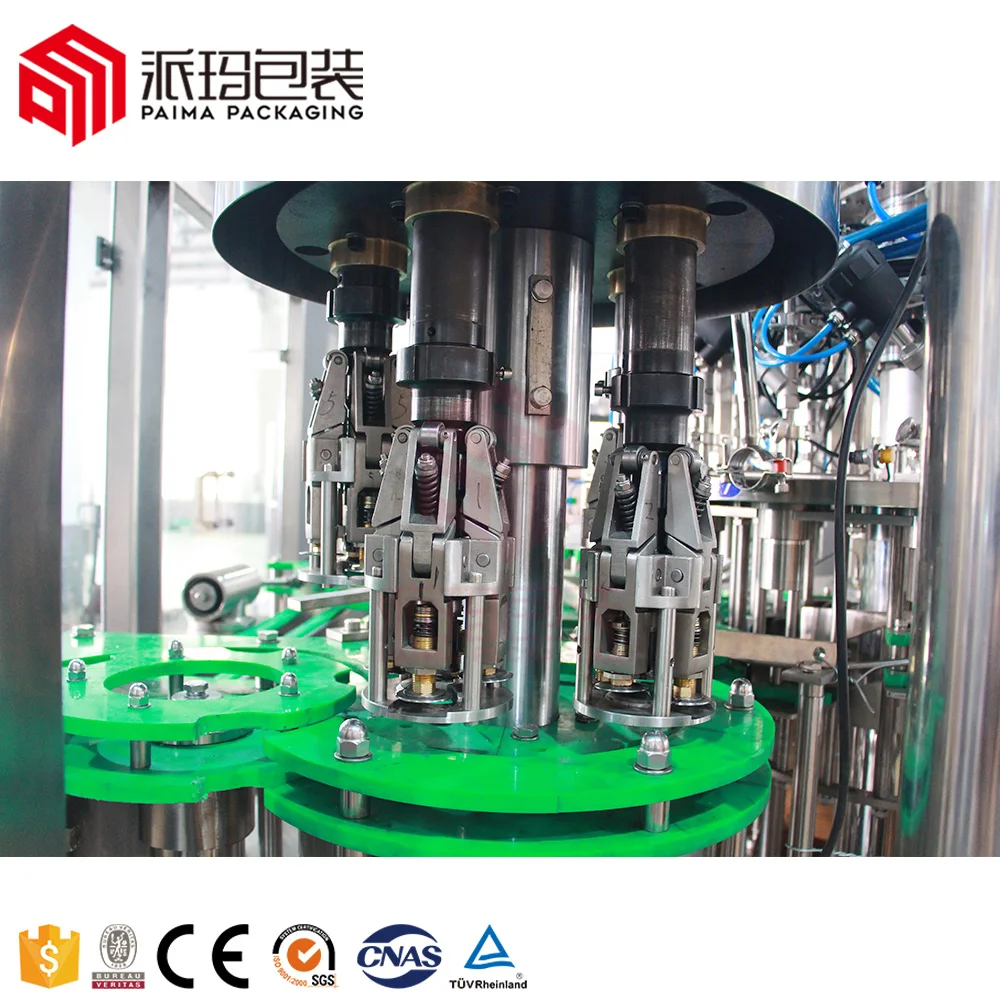

Capping parts of beer filling machine：

1. All 304/316 stainless steel construction

2. No bottle no capping

3. Automatic stop when lack of bottle

4. Capping effect is stable and reliable ,Defective rate ≤0.2% .

5. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

6. The latest drainage design will not accumulate liquid

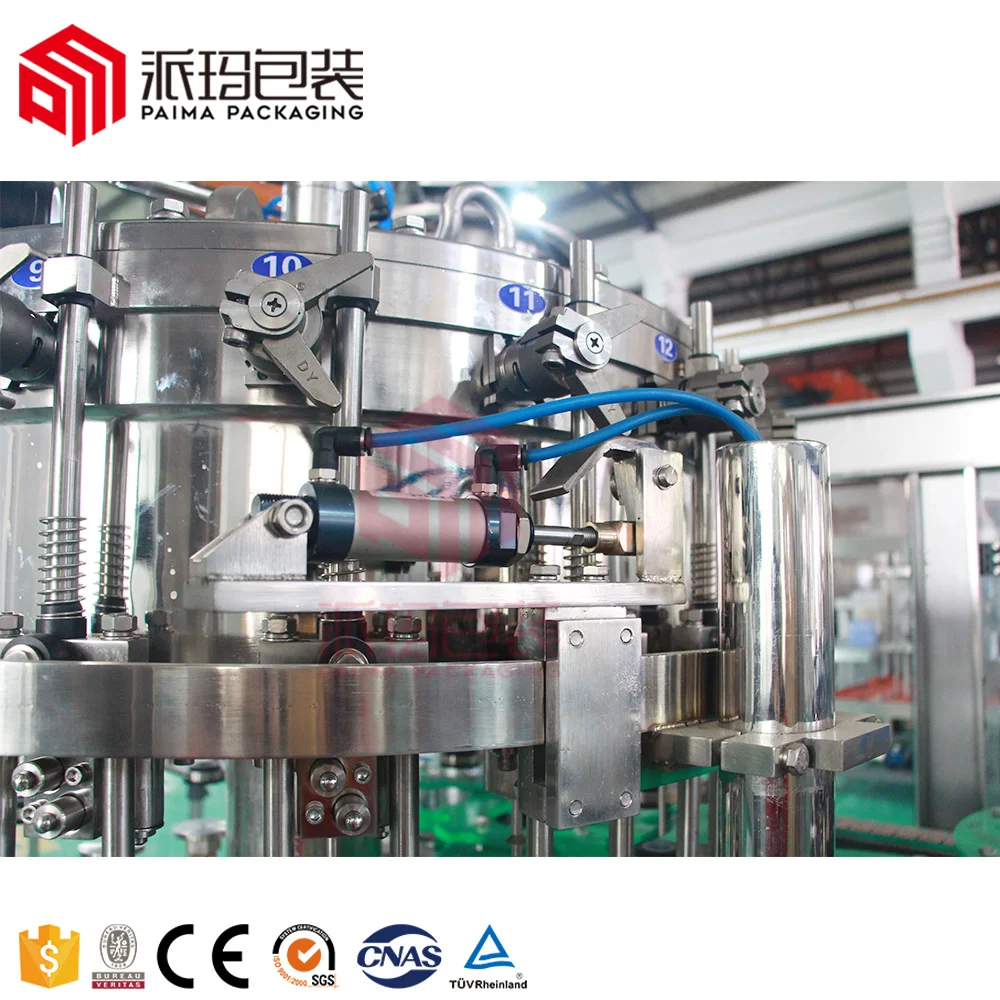

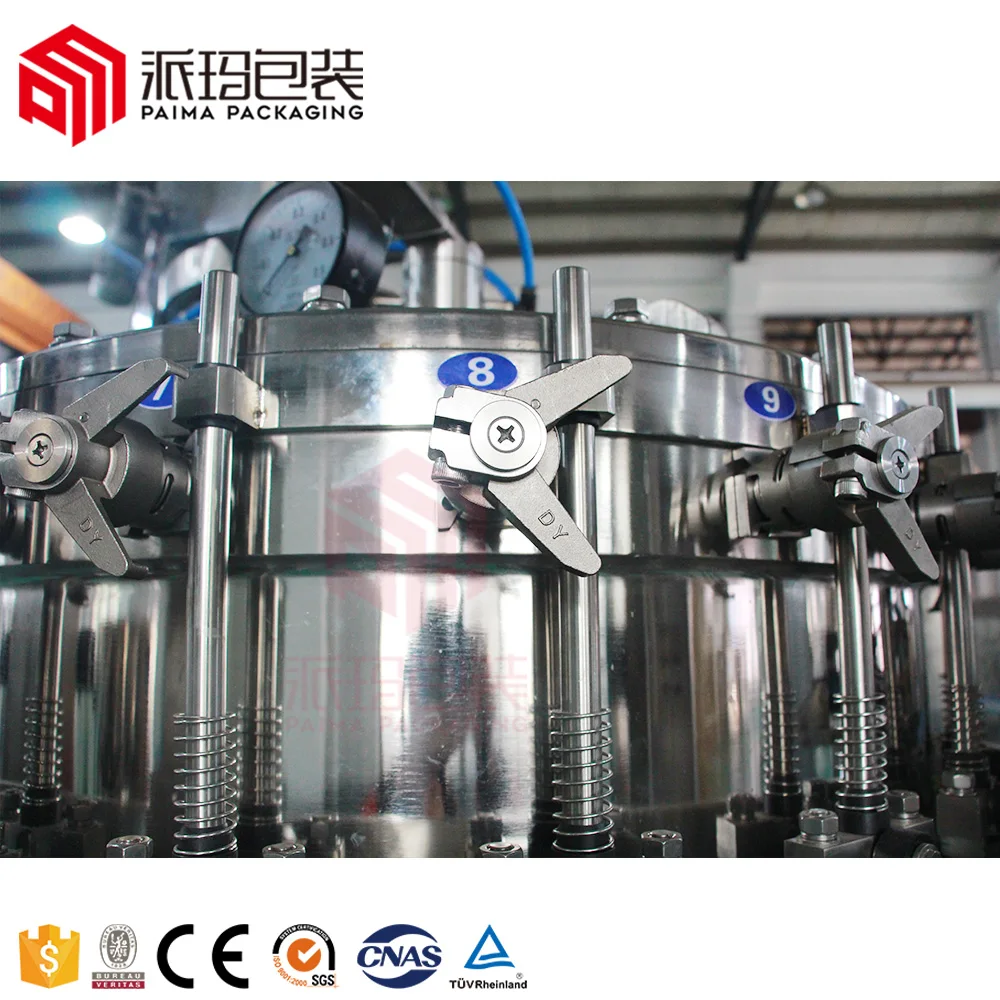

Filling Valves of beer filling machines:

CO2 pre-charge:
Open the charge valve, form a pathway between the bottle and alcohol tank’s CO2. The CO2 will fill into the bottle through the pathway. The charge valve will be closed when the setting time reached, which means the CO2 pre-charge process end.
Vacuum extraction:
Open the take-out-vacuum valve pole, form a pathway between bottle and vacuum. The CO2 and air will be discharged from the bottle by the pathway, and form into the vacuum in the bottle.The take-out-vacuum will be closed when the setting time arrived, then the once take-out-vacuum ends.
