Hot Filling Milk Tea Energy Drink Fruit Juice Filling Machines

This automatic juice filling machine mainly used in the beverage filling operations, the three function of bottle washing, filling, and capping are composed in one body of the machine, the whole process is automatic, it is conveniently turned to adjust the machine to fill various types of bottles, the filling operation is faster and more stable due to the advanced filling valve technology, The famous brand programmed controller (PLC) is adopted to control the machine runs automatically. It is the ideal preferred equipment for the beverage maker

Quantity:

Inquire Add to Basket

Product Description

Hot filling milk tea energy drink fruit juice filling machines

Product Description

This filling machine is mainly designed for filling hot temperature liquid into glass bottles; For example juice, tea drinks, etc which are made of concentrate juice. The final filling temperature will be around 85-90 degrees centigrade; Once the thermal meter in the juice filling machine is lower than the temperature, the juice will be a return to sterilizing machine again through the return system. Glass bottle juice filling machine is different from plastic bottle. It will be optional and suggested to apply 4 in 1 filling machine, one more washing system is adopted to warm up the glass bottle in advance.
The CSD filling machine is mainly used in beverage filling operations. The three functions of bottle wash, fill and seal is composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water, and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with a temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.
Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

characteristic of juice filling machine

Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this nable the change the bottle-shaped become easier.
Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
Spiraling declines when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Specification

Project
Juice filling machine
Model
12-12-5
18-18-6
24-24-8
32-32-10
40-40-12
50-50-15
Capacity (BPH)
2000-3000
3000-5000
5000-7000
7000-10000
10000-15000
16000-20000
Applicable bottle
φ=50-115  H=160-330 (200ML TO 2000ML) plastic screw cup or crown cap
Air press(Mpa)
≤0.4
Power supply
4.4 KW
5.2 KW
6.2 KW
6.2 KW
7.5 KW
11 KW
Overall dimension(mm)
2250×1650×2250
2600×1965×2250
2980×2200×2250
3880×2200×2250
4000×2250×2500
5500×3500×2500
Weight (KG)
2500
3500
4500
6000
7200
10000
Devices
Brand
Origins
PLC
SIEMENS
Germany
Inverter
SIEMENS
Germany
Touch Screen
SIEMENS
Germany
Switch
Schneider
France
Contactor
Schneider
France
Relayer
Schneider
France
Solenoid Valve
FESTO
Germany
Drive Motor
SEW EURODRIVE
Germany
Reducer
SEW EURODRIVE
Germany
Water Pump
GRUNDFOS
Denmark
Main Bearing
SKF
Sweden
Sensor
SICK
Germany
Air Component
FESTO
Germany
Stainless Steel Frame
POSCO
Korea
Details Images
Washing heads
1.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the
pollution.
2.Washing pump is made of stainless steel.
3. By high spray nozzle, a blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save the flush bottle.
4. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion-resistant bearing without maintenance.
Filling heads
1.Filling method for gravity filling.
2.Filling valve manufactured SUS 304/316L.
3.High precision, high-speed liquid filling.
4.Filling move by the rack drive system through gear transmission.
5.Hydraulic cylinder controlled by a float liquid level.
6.Using the latest double guide pillar type bottle of the lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.
Capping heads
1.Automatic check, no bottle no capping.
2.Capping heads in stainless steel 304/316L.
3.Capping heads stop working when lack of a bottle.
4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without a cover machine, can effectively avoid the occurrence of an open bottle.
5. High-efficiency centrifugal principle.












































Related Products

Automatic Fruit Juice Hot Filling Bottling Production Line

1. Bottle making system
pet preform→Autoloader→reheater →molding→ bottles

2. Water purification system
Source water tank →Source water pump→ Quartz sand filter→ Active carbon filter→ Ion soften machine→ Fine filter →Reverse Osmosis →Ozone sterilizer → pure water tank
3. Juice CSD drink processing system
(1). High-shear emulsifying tank + Plate heat exchanger
(2). Mixing tank
(3). UHT sterilizer + homogenizer machine + Buffer tank
(4). Hot water system + Hot water tank
(5). CIP cleaning system
4. Bottle filling & packing system
Pure water tank→Bottle blower→Air conveyor →Washing, filling & capping 3-in-1→ Light check → Full-automatic labeling machine → Inkjet machine →Full automatic PE film packing machine→ warehouse


Bottle blowing machine
Water Treatment System

Beverage Filling Machine

Hot Melt Glue Labeling Machine

Shrink Sleeve Labeling Machine

Adhesive Sticker Labeling Machine

Shrink Wrapping Machine

Grab Type Carton Packer

One Piece Type Carton Packer

Hot Filling Milk Tea Energy Drink Fruit Juice Filling Machines

characteristic of juice filling machine

Automatic Fruit Juice Hot Filling Bottling Production Line

Bottle blowing machine

Water Treatment System

Beverage Filling Machine

Hot Melt Glue Labeling Machine

Shrink Sleeve Labeling Machine

Adhesive Sticker Labeling Machine

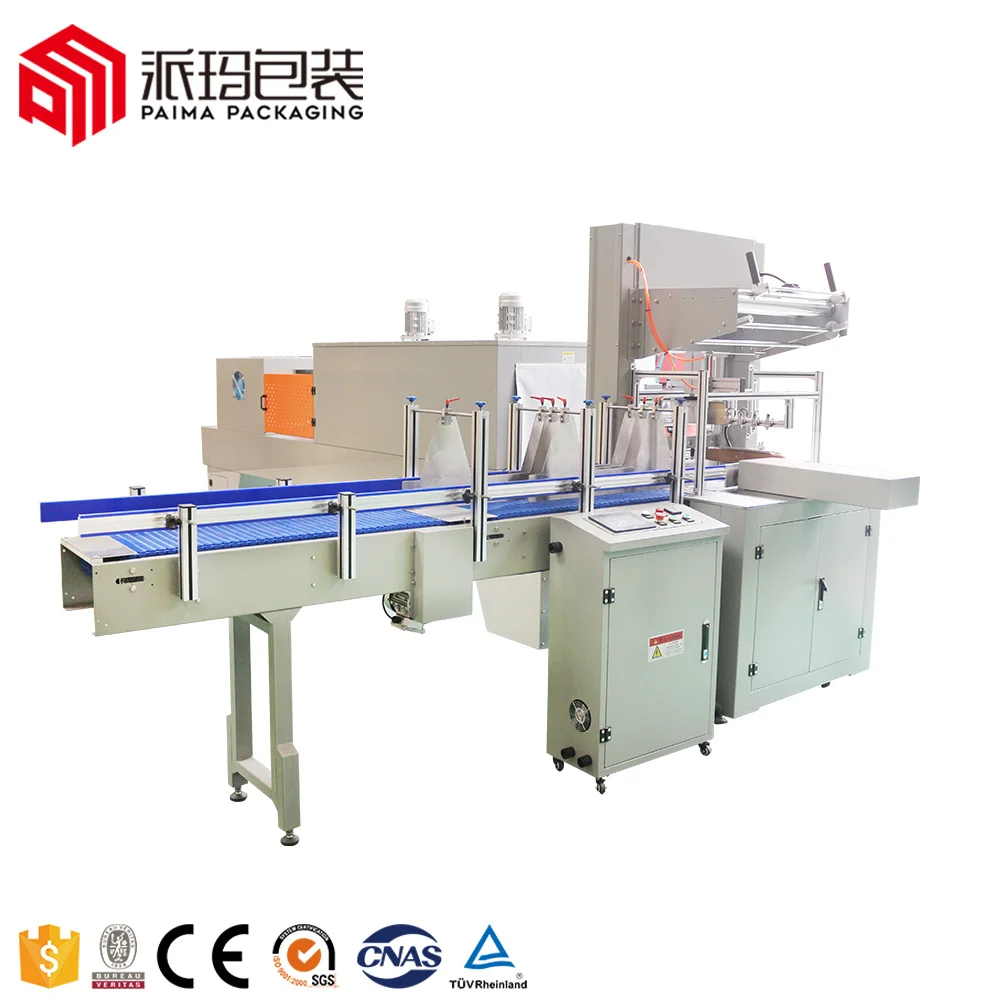

Shrink Wrapping Machine
